Chức năng chính
Màn hình hiển thị số cảm ứng"
Tự động giữ và chạy test
200 group of single data storage function
100 group of grouped data storage function
Single data viewing and data analysis functions
Built-in printer
12 Languages system (Simplified Chinese, traditional Chinese, English, French, German, Russian, Portuguese, Spanish, Korean, Japanese, Italian, Thai)
Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18
Applications
It is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Specification
| Rockwell Scales | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRP、HRR、HRS、HRV |
| Initial test force | 98.07N（10kgf） |
| Total test force | 588.4N（60kgf）980.7N（100kgf）1471N（150kgf) |
| Duration Time | 0-60S |
| Display | Touch screen |
| Hardness Resolution | 0.1HR |
| Loading mode of test force | Automatic Loading, Loading and Unloading |
| Hardness Value Conversion | HRA、HRB、HRC、HRE、HRF、HRG、HRK、HRH、HR15T、HR30T、HR45T、HR15N、HR30N、HR45N、HV0.1、HV1、HV5、HV10、HV15、HV30、HV50、HBS2、HBS10、HBS30、HBW、HK0.5、HK1、HLD、HS、Mpa |
| Conversion standard | ASTM-E140-12be、ISO-18265-2013、GB/T1172 |
| Language types | Simplified Chinese, Traditional Chinese, English, French, German, Russian, Portuguese, Spanish, Korean, Japanese, Italian, Thai |
| Instrument correction range | -10.0HR～+10.0HR；Step value 01.HR |
| data processing | Provide 200 groups of single data storage function and 100 groups of data storage function, and can provide a single data view and data analysis function. |
| Print Configuration | Built-in printer |
| Maximum height of specimen | With Lead screw protective sleeve 100mm，without Lead screw protective sleeve 170mm |
| Distance from indentation center to engine wall | 118mm |
| Outline size | 500×225×660（mm） |
| Net weight | 68kg |
| Executive standard | GB/T230.2,JJS Z2245，EN-ISO6508，ASTME-18 |

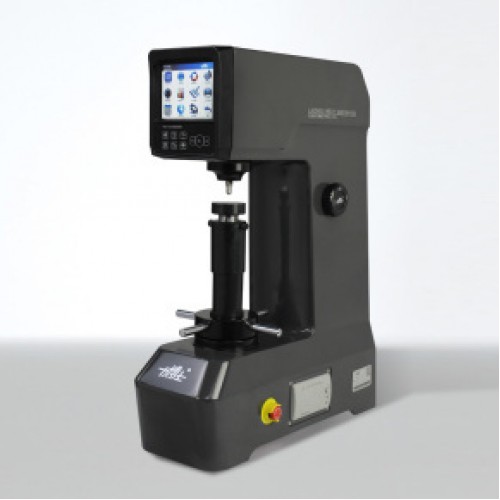

Máy đo độ cứng ROCKWELL hiển thị số HRS-150S
- Index:
- Availability: In Stock
