Model	Unit	IK-610LT-RH(B)
SPINDLE
Spindle Bore Diameter		NT50
Diameter of Spindle Nose	mm	Φ128.6
Spindle Motor	Hp	15(Servo motor)
Step of Spindle Speed	stage	2
Spindle Speed (50Hz)	rpm	L: 0 ~ 1000
Spindle Speed (60Hz)	rpm	H:994 ~ 2000
WORKING RANGE
Max Diameter of Cutter	mm	200
Travel	mm	600(up300 /down300 )
Rapid Travel AC Motor		0.4Kw/0.5Hp AC
		3 Phase 4 Poles x 1/40
Rapid Travel Speed	mm/min	177(50Hz)
		218(60Hz)
Reversal Slide		2mm/rev
		→\|\|← 0.01mm
ACCESSORIES
Oil Cooler for Hydraulic /		P-BO-750P2TSB-192
Lubrication Oil
Variable-frequency Drive	Kw/Hp	15/20
STANDARD ACCESSORIES (● INCLUDE IN PRODUCT)
Spindle Motor		15HP(Servo motor)
Rapid Travel AC Motor		●
Oil Cooler for Hydraulic /		●
Lubrication Oil
Variable-frequency Drive		●

Country of Origin		Taiwan
Weight (Approximate)	kg	638
Warranty		1 year (non artificial mistake)

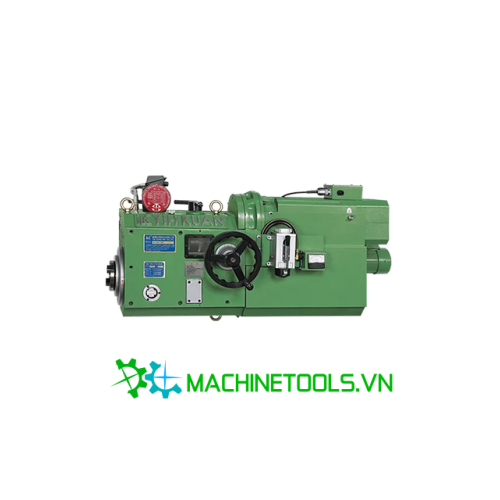

Đầu phay ngang IK-610LT-RH(B)
